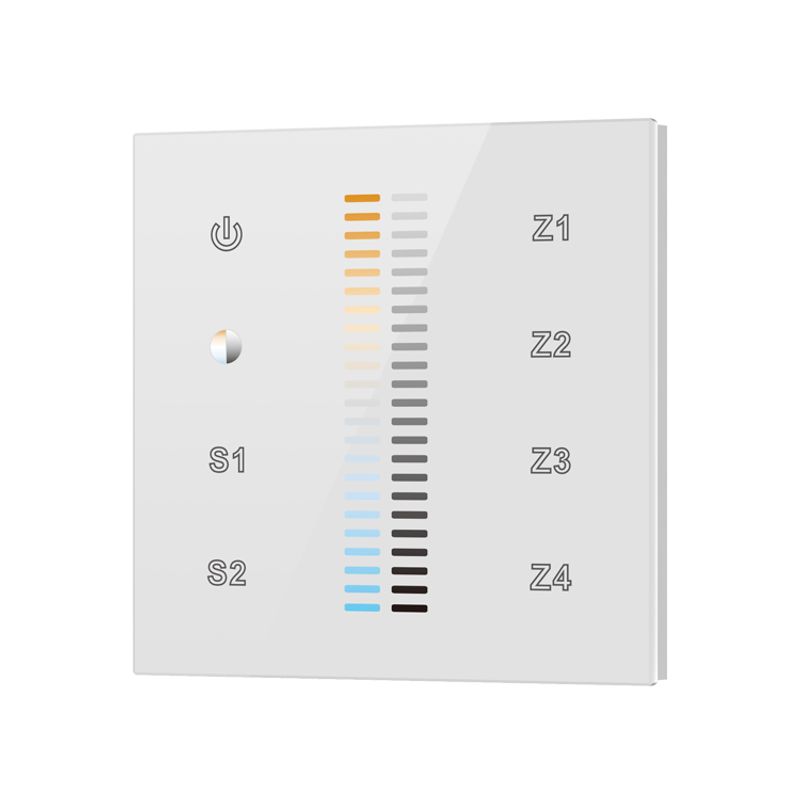

DALI CCT touch kontroller

DALI touch styring for å styre fargetemperatur (CCT). Kan monteres i veggboks.

Dette er en touch DALI dimmer som er kompatibel med standard DALI protokoll. Den kan dimme inntil 4 uavhengige soner, og dimmer helt uten flimmer helt ned til 0,1% effekt.. Kan også lagre inntil 2 forskjellige scener for alle 4 sonene. Enheten kan styre alle kjente DALI dimme enheter både for 12-24 volt og 230 volt.

Hovedspesifikasjoner:

• Touch sensitive.
• Glass interface(white & black).
• Comply to DALI standard protocol IEC 62386-102, IEC 62386-207, IEC 62386-209 and in compliance with DALI products
from other international incorporation.
• Built-in 100mA DALI power supply to power up to max. 50 DALI ECGs.
• Powered by DALI bus while not connected to AC mains.
• Max. 100 DALI ECGs on a DALI line can be controlled by 4 control panels via broadcast (2 by AC mains, 2 by DALI bus).
• Enable to control 4 DALI Groups and 2 DALI Scenes.
• Enable to set start DALI group number (0-15) and scene number (0-15) by rotary switches on the back.
• Supports DT8 devices
• Color temperature adjustment according to DALI specifications of Device Type 8, Color Type Tc.
• Each DT8 device is controlled via a single DALI address
