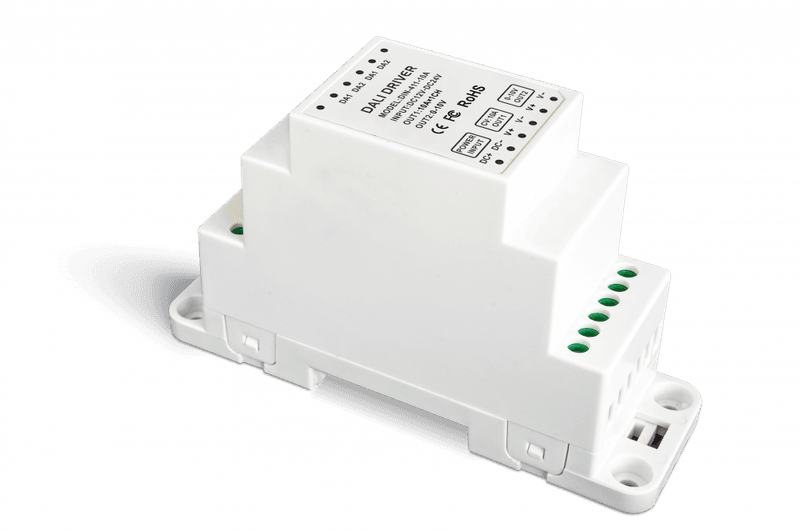

DALI dimmer, 1 kanal, 10 ampere.
Kan også gi ut 1-10 for input til en 1-10 volt dimmer.
LTECH developed a new DALI to PWM dimming driver which has solved the compatible problem
of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many
traditional intelligent dimming systems such as Lutron, Dynalite, Tridonic, Schneider, Clipsal, Osram,
Philips, ABB, etc.
DIN-411-10A CV dimming driver adopts the latest DALI standard IEC62386(compatible with the old
standard IEC60929), It can load Max 10A current, 12V can load max 120W, 24V can load max 240W.
1. Product Parameter:
Input Signal:
Input Voltage: DC12V~DC24V
Output: 10A x1CH+0-10V x 1CH
Max Output Power: 120W/240W(12V/24V)
Dimming Range: 0-100%
DALI Dimming Signal(
DIN Rail Mounting Size: TS-35/7.5 or TS-35/15 (IEC62386/IEC60929)
Mounting: DIN Rail or Screw
Weight(G.W.):120g
Working Temperature: -30℃-55℃
